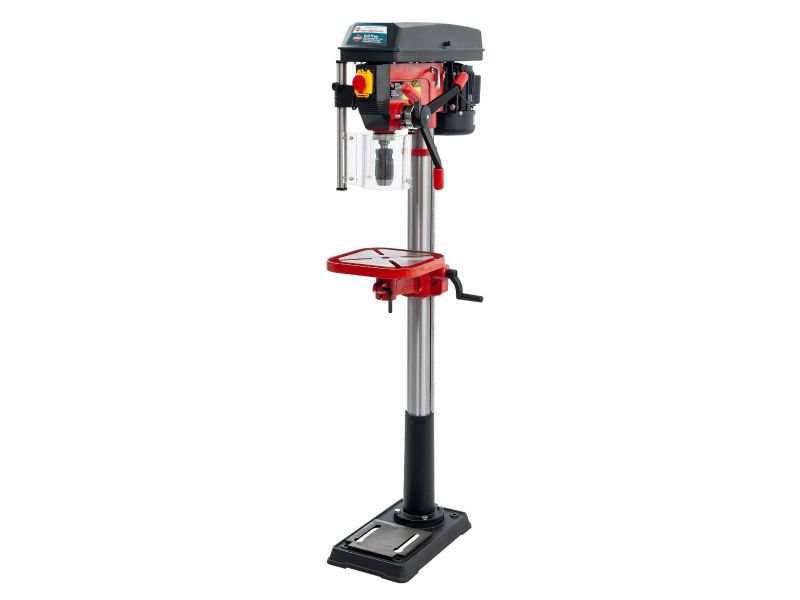

Pillar drilling machine 22-1600 12 speeds
22-1600 column drill, 12 gears is a versatile tool, ideal for demanding workshop and production work. Equipped with 12 gears and a solid construction, it ensures precise and stable drilling in various materials, making it an excellent choice for professionals.
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 77321 |
|---|---|
| EAN | 8712418310733 |
| Length (mm) | 270 |
| Width (mm) | 460 |
| Height (mm) | 1600 |
| Weight (kg) | 71,00 |
| Drill diameter (max. mm) | 25 |
| Drill head connection | MT3 |
| Drill head reach (mm) | 5-20 |
| Spindle reach (mm) | 85 |
| Motor power (hp / kW) | 750 W |
|---|---|
| Rounds per minute (RPM) | 280, 420, 440, 550, 620, 660, 1150, 1180, 1400, 1550, 1830, 2380 |
| Distance between table and spindle (mm) | 685 |
| Distance between base and spindle (mm) | 1175 |
| Table size (mm) | 290 x 290 |
| Foot size (mm) | 460 x 270 |
| Column diameter (mm) | 80 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Number of gears | 12 |
Description
Column Drill 22-1600, 12 Speeds
The Column Drill 22-1600 is a durable and versatile tool designed for precise work in demanding workshop and production environments. Equipped with 12 speeds, it allows for precise adjustment of rotational speed to the specifics of the material you are working with, ensuring maximum precision and work efficiency.
Key Features
- 12-stage speed adjustment: Speed range from 280 to 2380 rpm allows for precise parameter adjustment for various materials.
- High precision: The spindle reach of 85 mm and a maximum drill diameter of 25 mm make the drill ideal for tasks requiring high precision.
- Solid construction: An 80 mm diameter column and a large base (460 x 270 mm) ensure stability and safety during use, even during intensive operations.
- Versatility: With adjustable chuck (5-20 mm) and a wide range of rotations, the drill is able to handle both small and large projects.
Technical Specifications
- Motor power: 0.75 kW
- Rotational speeds: 280, 420, 440, 550, 620, 660, 1150, 1180, 1400, 1550, 1830, 2380 rpm
- Drill diameter: 5-20 mm (MT3 mount)
- Spindle reach: 85 mm
- Distance between the table and spindle: 685 mm
- Spindle to base distance: 1175 mm
- Table dimensions: 290 x 290 mm
- Base dimensions: 460 x 270 mm
- Column diameter: 80 mm
- Power supply: 230 V / 50 Hz / 1 Ph
- Weight: 71 kg
The Column Drill 22-1600 is an excellent tool for professionals who require precise and reliable equipment. With its solid construction, high motor power, and 12-stage speed adjustment, it performs excellently in workshops and manufacturing plants where versatility and efficiency are essential.
