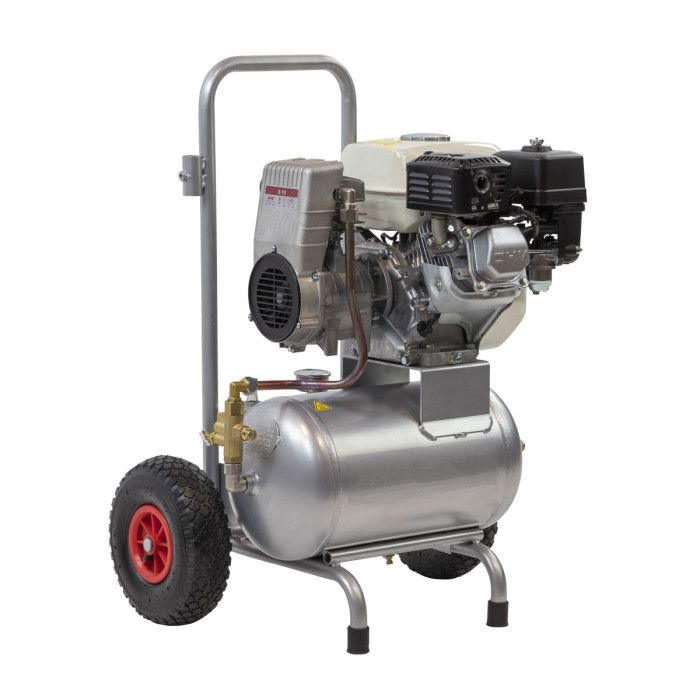

Mobile compressor BM 20-275 Airpress (HONDA GP160) 10 bar 4.8 / 3.6 kW 200 l/min 20 l
SKU
36779
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 36779 |
|---|---|
| EAN | 8712418418873 |
| Length (mm) | 610 |
| Width (mm) | 460 |
| Height (mm) | 850 |
| Weight (kg) | 40,00 |
| Start | Manual |
| Drive | Direct driven 1:1 |
| Air receiver | Yes |
| Capacity air receiver (l) | 20 |
| Galvanized tank | No |
| Intake capacity (l/min) | 275 |
| Free air delivery (l/min) | 200 |
| Free air delivery (m3/h) | 12 |
| Maximum pressure (bar) | 10 |
| Connection type | Euro / Orion |
|---|---|
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Sound volume reduction | No |
| Stages | 1 |
| Oilfree | No |
| Filter with reducer | No |
| Motor Type | Honda GX160 /4 stroke |
| Motor power (hp / kW) | 4.8 HP / 3.6 kW |
| Wheels | Yes |
| Pump speed (rpm) | 3400 |
| Pump type | S15 |
| Intercooler | No |
| After cooler | No |
| Fuel | Benzine |
Description
BM 20/275 Combustion Compressor (Honda GP160)
The BM 20/275 combustion compressor is a compact and reliable device designed for field tasks, especially where access to electricity is limited. Equipped with a Honda GP160 engine, this model provides the efficiency and power needed for effective work in construction, agriculture, horticulture and mobile services.
Main technical parameters:
- Honda GP160 engine: Four-stroke petrol engine with a power of 4.8 HP (3.6 kW), which thanks to the decompression system ensures easy and quick starting. The OHV (overhead valve) design optimizes combustion, which increases work efficiency and productivity.
- Capacity 200 l/min: The two-piston compressor mechanism ensures an air flow of 200 l/min, which enables stable powering of pneumatic tools requiring moderate air demand.
- 10 bar working pressure: The compressor reaches a maximum working pressure of 10 bar, which makes it suitable for operating many pneumatic tools and devices.
- 20 L Tank Capacity: The compact 20 L tank makes it easy to transport and allows for efficient work in shorter cycles, perfect for off-road applications.
Advanced design solutions:
- Lowered speed aluminum pump: The aluminum pump construction reduces the weight of the compressor, and the reduced speed increases the duty cycle, ensuring optimal durability and reduced component wear.
- Mobility and comfort: Large inflatable wheels and an ergonomic transport handle allow you to easily move the compressor over uneven terrain, which is crucial during field work.
- Vibration reduction system: The built-in vibration dampening system increases comfort of use, especially during long-term mobile operations.
Application:
The BM 20/275 combustion compressor is an ideal solution for professionals who need a mobile, independent source of compressed air. It is perfect for field tasks such as construction, agricultural and service work, and its compact size allows for easy transport and flexibility of use.
Choose BM 20/275 and ensure efficiency and reliability anywhere!
