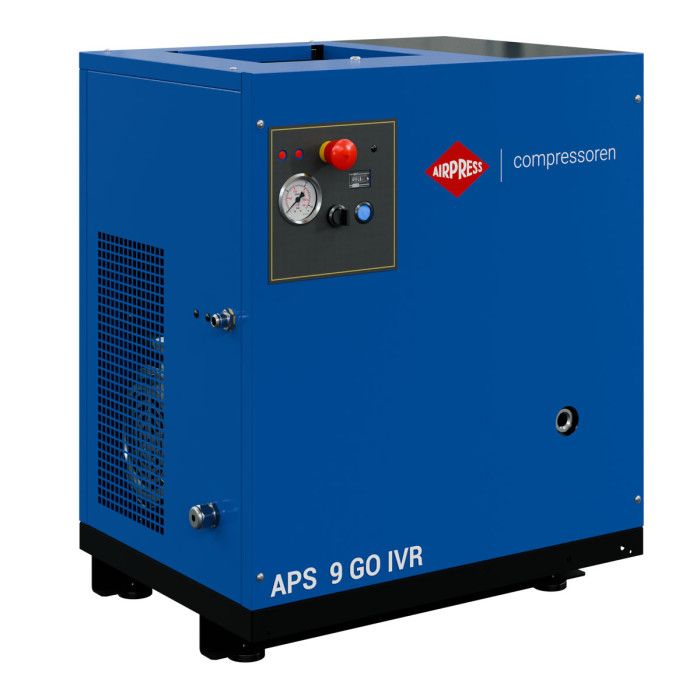

Screw Compressor APS 9 GO IVR 10 HP / 7.5 kW 10 bar 264 - 798 l/min
SKU
361809-IVR
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 361809-IVR |
|---|---|
| EAN | 8712418435184 |
| Units per product (pcs.) | 1 |
| Weight (kg) | 99 kg |
| Length (mm) | 780 mm7.8 dm |
| Width (mm) | 615 mm6.15 dm |
| Height (mm) | 946 mm9.46 dm |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor Type | PM |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE4 |
| Stages | 1 |
| Variable speed (IVR) | Yes |
| Pump speed (rpm) | 3385 |
| Control panel | ON/OFF |
| Air receiver | No |
| Galvanized tank | No |
| Dryer | No |
|---|---|
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
| Minimum free air delivery (l/min) | 264 L/m1.584 kL/s |
| Minimum free air delivery (m3/h) | 15.58 m³/h4.328 dm³/s |
| Maximum free air delivery (l/min) | 798 L/m1.33 L/h |
| Maximum free air delivery (m3/h) | 47.88 m³/h2.217 L/m |
| Noise level dB(A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 48 |
| Main air connection (") | 1/2 |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP23 |
