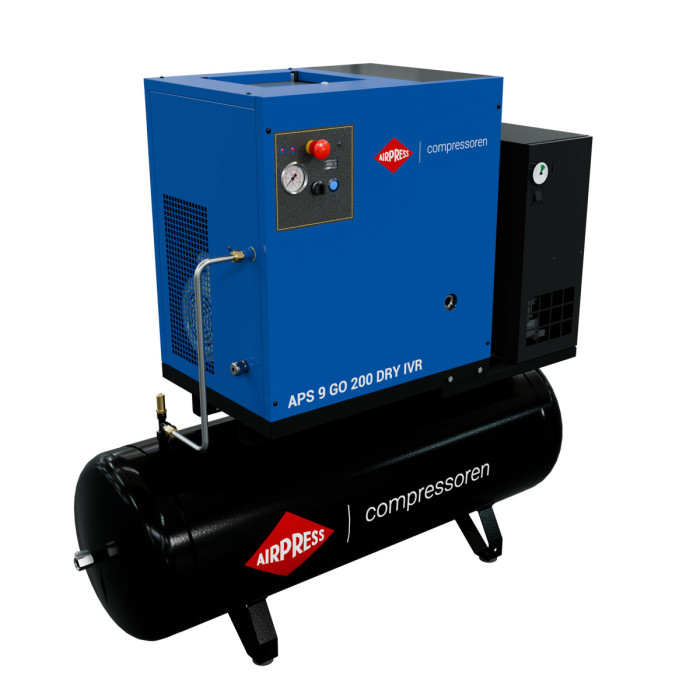

Screw Compressor APS 9 GO 200 Combi Dry IVR 10 HP / 7.5 kW 10 bar 848 l/min 200 l
SKU
361959-IVR
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 361959-IVR |
|---|---|
| EAN | 8712418435207 |
| Length (mm) | 1550 |
| Width (mm) | 750 |
| Height (mm) | 1502 |
| Weight (kg) | 180,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE4 |
| Motor Type | PM |
| Drive | Direct driven 1:1 |
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Air receiver | Yes |
| Capacity air receiver (l) | 200 |
| Galvanized tank | No |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 |
|---|---|
| Free air delivery at 10 bar (l/min) | 848 |
| Maximum free air delivery (l/min) | 848 |
| Maximum free air delivery (m3/h) | 29.9 |
| Noise level dB(A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 48 |
| Plug type | EU |
| Refrigerant | R513A |
| Main air connection (") | 1/2 |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Stages | 1 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP23 |
| Variable speed (IVR) | Yes |
