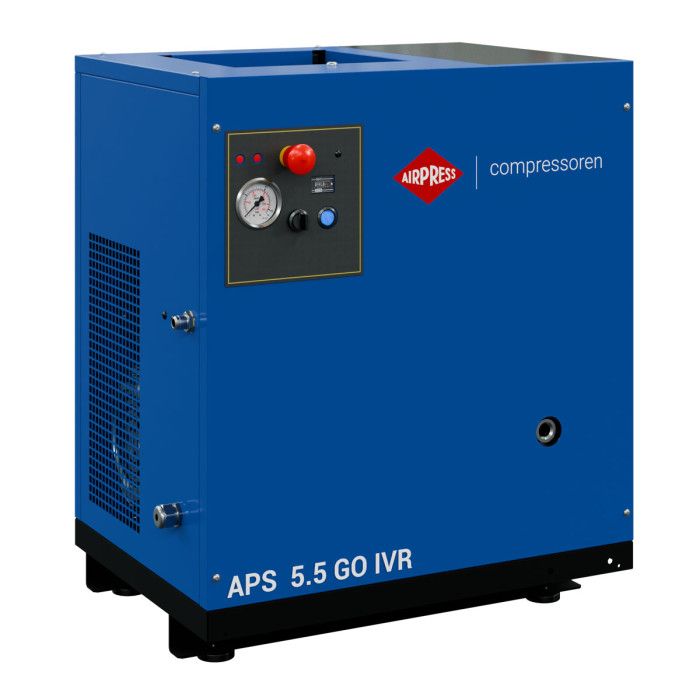

Screw Compressor APS 5.5 GO IVR 5.5 HP / 4 kW 10 bar 264 - 468 l/min
SKU
361805-IVR
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 361805-IVR |
|---|---|
| EAN | 8712418435146 |
| Length (mm) | 780 |
| Width (mm) | 615 |
| Height (mm) | 946 |
| Weight (kg) | 99,00 |
| Units per product (pcs.) | 1 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 5.5 HP / 4.0 kW |
| Motor efficiency class | IE4 |
| Motor Type | PM |
| Drive | Direct driven 1:1 |
| Control panel | ON/OFF |
| Dryer | No |
| Air receiver | No |
| Galvanized tank | No |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 |
| Minimum free air delivery (l/min) | 264 |
|---|---|
| Minimum free air delivery (m3/h) | 15.84 |
| Maximum free air delivery (l/min) | 468 |
| Maximum free air delivery (m3/h) | 28.08 |
| Noise level dB(A) (0 m) | 60 |
| Noise level dB(A) (4 m) | 45 |
| Plug type | EU |
| Main air connection (") | 1/2 |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Stages | 1 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP23 |
| Variable speed (IVR) | Yes |
| Pump speed (rpm) | 2035 |
