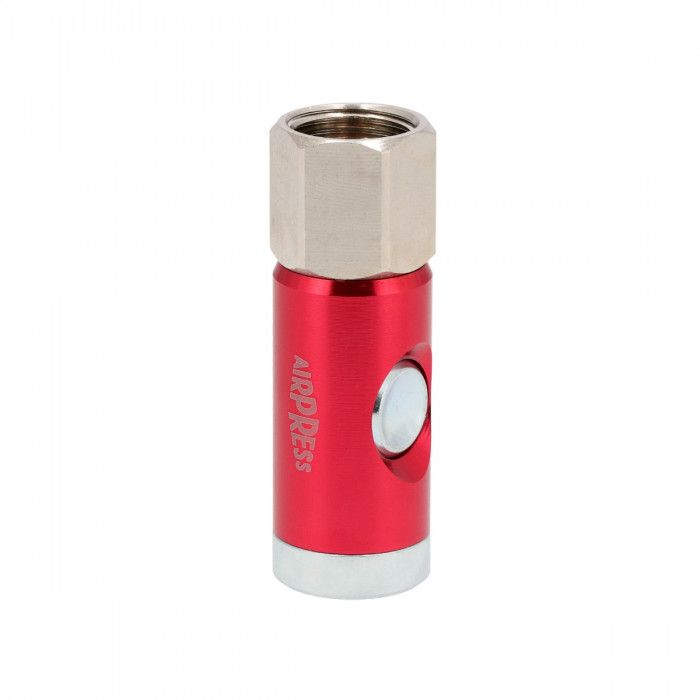

Safetycoupling quick release type Orion 1/2" female with push button
SKU
43A604
Airpress safety couplings Orion for a safe working environment. The Occupational Health and Safety Act requires that hoses must be safely removed from a shortcut. In the event of accidents with unsafe shortcuts, the employer is negligent and legally liable for the consequential damages. That is why we recommend Airpress's new safety couplings. Pressing once is venting the hose and pressing the second time is disconnecting the hose from the safety coupling. We also recommend the use of hardened plug nipples to guarantee the service life of the safety coupling.
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 43A604 |
|---|---|
| EAN | 08712418382990 |
| Length (mm) | 25 |
| Width (mm) | 21 |
| Height (mm) | 89 |
| Weight (kg) | 0,13 |
| Air flow at 6 bar (l/min) | 1600 |
| Connection size (") | 1/2 |
| Connection type | Orion |
| Thread type | Female |
| Number of connections | 2 |
| Maximum pressure (bar) | 10 |
|---|---|
| Shape | Straight |
| Working temperature (°C) | -20°C +70°C |
| Safety standard | No |
| Rotatable | Yes |
| Hardened | No |
| Condensate separator | No |
| Flow regulator | No |
| Material | Anodized aluminum/Hardened Stainless steel/Stainless steel |
| Blister | Yes |
