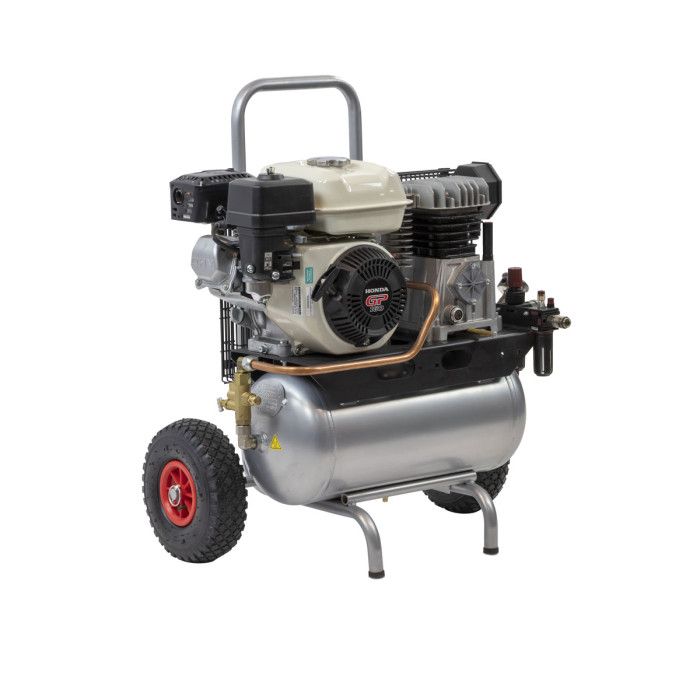

Mobile compressor BM 22-320 Airpress (HONDA GP160) 10 bar 4.8 hp/ 3.6 kW 220 l/min 22 l
SKU
36780
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 36780 |
|---|---|
| EAN | 8712418418859 |
| Length (mm) | 740 |
| Width (mm) | 470 |
| Height (mm) | 850 |
| Weight (kg) | 54,00 |
| Start | Manual |
| Drive | V-belt driven |
| Air receiver | Yes |
| Capacity air receiver (l) | 22 |
| Galvanized tank | No |
| Intake capacity (l/min) | 320 |
| Free air delivery (l/min) | 220 |
| Free air delivery (m3/h) | 13.2 |
| Maximum pressure (bar) | 10 |
| Connection type | Euro / Orion |
|---|---|
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Sound volume reduction | No |
| Stages | 1 |
| Oilfree | No |
| Filter with reducer | No |
| Motor Type | Honda GX160 /4 stroke |
| Motor power (hp / kW) | 4.8 HP / 3.6 kW |
| Wheels | Yes |
| Pump speed (rpm) | 1350 |
| Pump type | PAT24A |
| Intercooler | No |
| After cooler | Yes |
| Fuel | Benzine |
Description
Two-piston combustion compressor BM 22/320 (Honda GP160)
The BM 22/320 compressor, equipped with a reliable Honda GP160 engine, is a mobile and efficient solution designed for field work, without access to electricity. Thanks to its compact design, high power and solid construction, the compressor is ideal for demanding conditions such as construction sites, agriculture or mobile service services.
Main technical parameters:
- Honda GP160 engine: Efficient 4.8 HP (3.6 kW) four-stroke engine with easy starting thanks to automatic decompression system. The OHV (overhead valve) design ensures optimal combustion efficiency and operational reliability even under long-term loads.
- 220 l/min air flow: The two-piston system offers a stable air flow of 220 l/min, which enables the operation of a variety of pneumatic tools.
- Maximum working pressure 10 bar: Provides sufficient pressure to work with tools that require intensive air supply.
- 22 L tank: A compact tank that allows for convenient movement and effective use in the field, while offering the air supply necessary to work in shorter cycles.
Advanced design solutions:
- Lightweight aluminum pump with reduced speed: The pump design reduces the weight of the compressor, and the reduced speed contributes to a longer duty cycle (60%-40%), which reduces component wear and extends durability devices.
- Mobility and durability: Thanks to the inflatable wheels and ergonomic handle, the compressor moves easily even on uneven terrain, ensuring full mobility and stability of work.
- Vibration damping system: The built-in vibration reduction system increases the comfort of work and stability of the device, which is important in difficult field conditions.
Application:
The BM 22/320 combustion compressor is an excellent choice for professional field applications, such as construction, agriculture, gardening and mobile services. It ensures full power independence and high work efficiency, even in the most demanding conditions.
Choose BM 22/320 and gain a reliable partner for field work!
