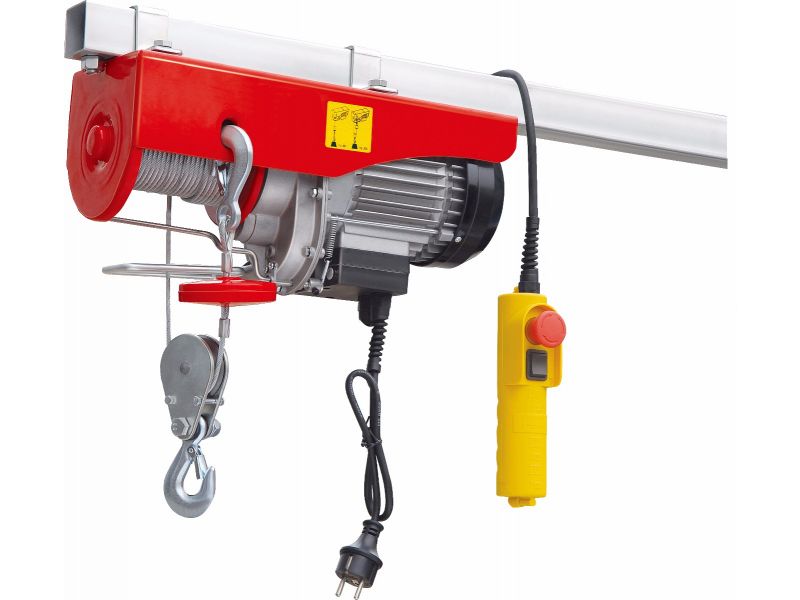

Electric cable hoist 400/800 kg
SKU
78021
- Direct delivery from our own stock.
- Have questions or need advice? Contact us!
- Thanks to our expertise, you can get the best product for your needs.
- Over 60 years of experience in compressed air technologies.
Product details
| SKU | 78021 |
|---|---|
| EAN | 8712418336320 |
| Weight (kg) | 19 kg |
| Length (mm) | 392.5 mm3.925 dm |
| Width (mm) | 146 mm1.46 dm |
| Height (mm) | 174 mm1.74 dm |
| Swivel range (°) | 180 |
| Lifting power | 400/800 kg |
| Rope diameter (mm) | 5.1 |
| Rope lift direct/sheave (m) | 12/6 |
|---|---|
| Lifting speed direct/sheave (m/min) | 8/4 |
| Temperature | 0 – 40 °C |
| Power (kW) | 1.350 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP54 |
| Manufacturer | Airpress Polska Sp. z o.o. |
| Characteristics | block and hook are standard equipment |
