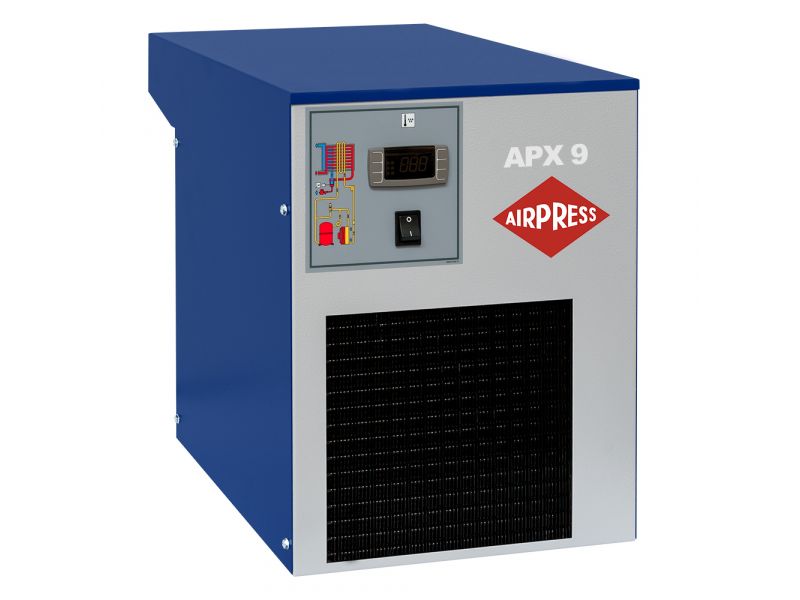

Compressed air dryer APX 9 3/4" 850 l/min
APX 9 3/4" refrigeration dryer 850 l/min 16 bar is an efficient device for treating compressed air, reaching a PDP dew point of +3°C. Equipped with an aluminum heat exchanger and automatic condensate drain , guarantees reliable protection of pneumatic installations against moisture and corrosion.
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 390009 |
|---|---|
| EAN | 8712418362701 |
| Length (mm) | 350 |
| Width (mm) | 493 |
| Height (mm) | 450 |
| Weight (kg) | 20,00 |
| Air flow at 7 bar (l/min) | 850 |
| Air flow at 7 bar (m3/h) | 51 |
| Air connection (") | 3/4 |
| Connection type | Male |
| Maximum pressure (bar) | 16 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
|---|---|
| Power (kW) | 0.19 |
| Refrigerant | R513A |
| Control panel | Digital |
| Pressure dew points (°C) | 4 (+/-1) |
| Max. inlet air temperature (°C) | 55 |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 43 |
| Purity class - humidity (ISO 8573-1) | 4 |
| Type | APX |
Description
APX 9 3/4" refrigeration dryer 850 l/min 16 bar
APX 9 3/4" refrigeration dryer 850 l/min 16 bar is a compact and efficient solution created for workshop and service applications. Thanks to advanced technology and solid construction, the device effectively eliminates moisture from compressed air , ensuring its purity in accordance with class 4 according to ISO 8573-1. Stable PDP dew point of +3°C and maximum operating pressure 16 bar make APX 9 an irreplaceable element in pneumatic systems.
Key features
- Stable dew point: PDP +3°C guarantees effective moisture removal and protection of pneumatic installations.
- Aluminum heat exchanger: Minimizes pressure losses and increases dehumidification efficiency.
- Automatic condensate drain: Maintenance-free system ensures uninterrupted operation of the device.
- Eco-friendly refrigerants: Environmentally friendly solutions reduce greenhouse gas emissions.
- Compact design: Perfect for installation in limited workshop spaces.
- Energy saving: Thanks to its optimized design, the dehumidifier consumes a minimum amount of energy, which allows for lower operating costs.
Applications
APX 9 3/4" refrigeration dryer 850 l/min 16 bar is an ideal solution for mechanical and car workshops and service plants, where stability and high quality of compressed air are crucial for the effective operation of pneumatic tools and systems. It is also suitable for applications requiring reliable moisture separation in stable operating conditions.
Innovative drying technology
The APX 9 dehumidifier uses a modern aluminum heat exchanger, which minimizes pressure losses and ensures efficiency in the moisture separation process. Automatic condensate drain eliminates the need to manually remove water, which significantly increases the convenience of use and work efficiency. Thanks to the use of innovative solutions, the device is virtually maintenance-free, which saves the operator's time.
Technical specifications
- Model: APX 9
- Nominal flow: 850 l/min
- Maximum pressure: 16 bar
- Ambient temperature range: 5°C – 43°C
- PDP: +3°C
- Connection: 3/4"
Ecological and energy-saving solution
For the sake of the natural environment, the APX 9 dehumidifier uses the R513A refrigerant, which has a low global warming impact (GWP). The optimized design of the device allows for a significant reduction of energy consumption, which translates into lower operating costs and reduced emissions of harmful gases into the atmosphere.
Versatility and convenient installation
The compact dimensions and lightweight design of the dehumidifier APX 9 allow for easy installation in various work environments, even in limited workshop spaces. The solid casing and resistance to external factors make the device perfect for difficult conditions, guaranteeing reliable operation.
Pneumatic installation protection
The APX 9 dehumidifier not only provides clean and dry air, but also protects entire pneumatic systems against corrosion, damage and failures. Regular removal of moisture prevents the formation of deposits and rust, which significantly extends the life of pneumatic tools and compressed air machines.
