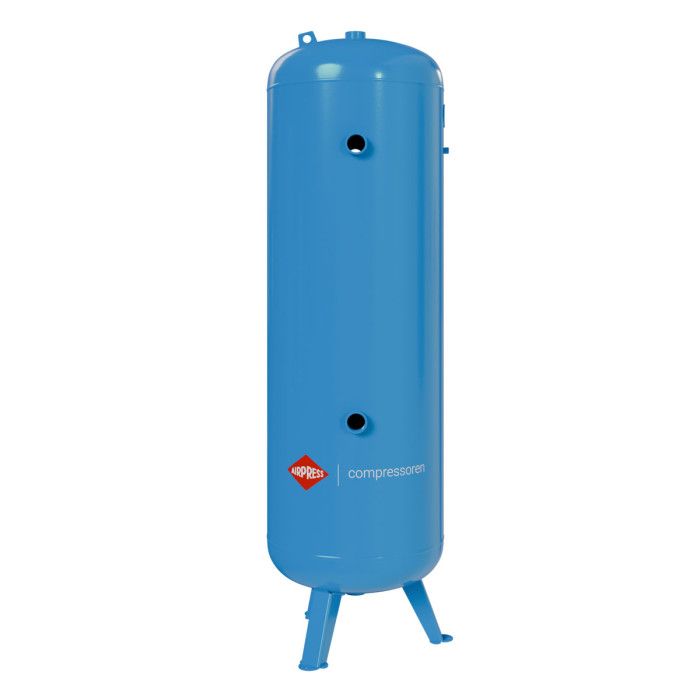

Air receiver 500 L 16 bar vertival
SKU
36107
- Airpress delivers from our own stock!
- Need advice? Contact us!
- Thanks to our knowledge, you have the best product.
- More than 60 years of experience in compressed air technologies.
Product details
| SKU | 36107 |
|---|---|
| EAN | 8712418022247 |
| Units per product (pcs.) | 1 |
| Weight (kg) | 145 kg |
| Height (mm) | 2,055 mm2.055 m |
| Diameter (mm) | 600 |
| orientation | Vertical |
| Material | Coated Metal |
| Capacity air receiver (l) | 500 |
| Main air connection (") | 2 |
|---|---|
| Number of main air connections | 4 |
| Manometric connection (") | 0.375 in375 mil |
| Number of manometric connections | 1 |
| Top and bottom connections (") | 2 in |
| Maximum pressure (bar) | 16 |
| Max. working temperature (°C) | 120 °C |
| Min. working temperature (°C) | -10 °C |
